High Temperature Li-SOCl2 Battery for MWD / LWD Tools

TENSOR



28.8V Primary Li-SOCl2 Battery
AKDD1508A5TS 150℃
Tensor Battery Pack



Nominal voltage:                                           28.8V
Nominal capacity:                                    28Ah

Maximum continuous current:

Maximum pulse current:

500mA

1500mA

Operating temperature:                                     -40~+150℃
Outline dimension:                                        Length 1140±2.0mm, Diameter 37.5mm±1.0mm

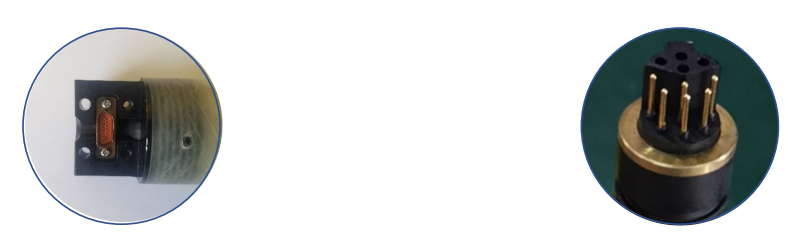

Battery Ends

Top: 6 Pin/4 Socket Kintec

Bottom: 15 Pin Female MDM Non floating







 *Optional Smart IC: Battery monitor that measures and records voltage, current, capacity and temperature.
