High Temperature Li-SOCl2 Battery for MWD / LWD Tools

Bluestar Vertex



28.8V Primary Li-SOCl2 Battery
AKDD1508A5TS 150℃
Bluestar Vertex Battery Pack


Nominal voltage:                                           28.8V
Nominal capacity:                                    28Ah

Maximum continuous current:

Maximum pulse current:

500mA

1500mA

Operating temperature:                                     -40~+150℃
Outline dimension:                                        Length 1187.2±2.0mm, Diameter 37.4mm±1.0mm

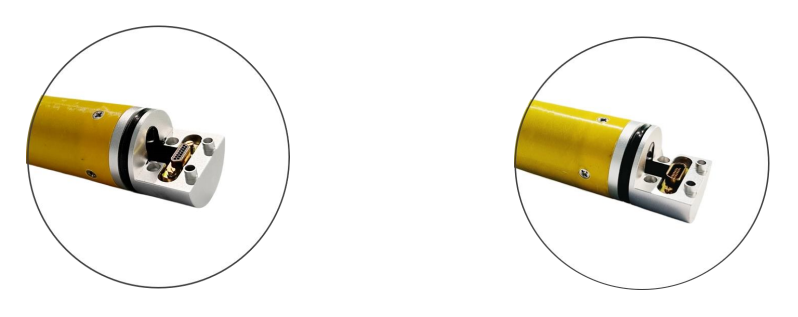

Battery Ends

Top: 15Pin Male MDM Non floating

Bottom: 15 Socket  Female MDM Non floating





 *Optional Smart IC: Battery monitor that measures and records voltage, current, capacity and temperature.
